SMST30UU NB 30mm Slide Bush Bushings Motion Linear Bearing
586,26 $ CAD 791,45 CADVous économisez 205,19 $ CAD
SKU: Kit20720
UPC: 00193019121160
UPC: 00193019121160
Item: SMST30UU NB Bearing
Type: Linear Slide Bush
Retainer Material: Steel
Bearing Inner Diameter: 30mm
Quantity: One Bearing
Type: Linear Slide Bush
Retainer Material: Steel
Bearing Inner Diameter: 30mm
Quantity: One Bearing

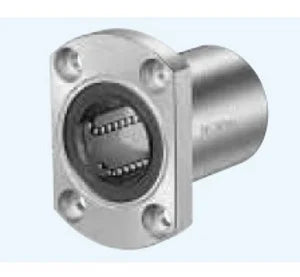

| SMST30UU NB Two Side Cut Flange Anticorrosion Slide Bush Made in Japan:NB Linear Systems Nippon Bearing Linear Systems |
SMST30UU NB Two Side Cut Flange Linear Anticorrosion Slide Bush, The retainer material is steel, series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), Made in Japan.
|

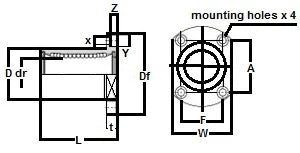

| Dimensions majeures | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| dr | D | L | Df | W | t | F | Un | X x Y x Z | ||
| mm | Tolérance | mm | Tolérance | |||||||
| 30 | 0-10 | 45 | 0-19 | 64 | 74 | 51 | 10 | 49 | 35 | 6.6 x 11 6.1 |
