SMSTC13UU NB 13mm Slide Bush Bushings Miniature Motion Linear Bearing
494,90 $ CAD 668,10 CADVous économisez 173,20 $ CAD
SKU: Kit20755
UPC: 00193019121481
UPC: 00193019121481
Item: SMSTC13UU NB Bearing
Type: Linear Slide Bush
Retainer Material: steel
Bearing Inner Diameter: 13mm
Quantity: One Bearing
Type: Linear Slide Bush
Retainer Material: steel
Bearing Inner Diameter: 13mm
Quantity: One Bearing

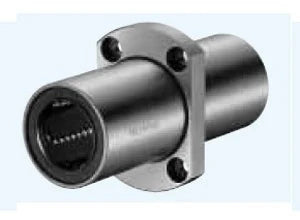

| SMSTC13UU NB Two Side Cut Center Flange Anticorrosion Slide Bush Made in Japan:NB Linear Systems Nippon Bearing Linear Systems |
SMSTC13UU NB Two Side Cut Center Flange Linear Anticorrosion Slide Bush, Bearing is seals on both sides, The retainer material is steel, series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), Made in Japan.
|

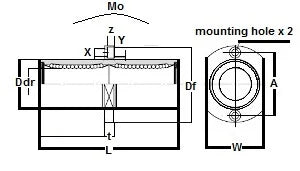

| Dimensions majeures | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| dr | D | L | Df | W | t | Un | X x Y x Z | |||
| mm | Tolérance | mm | Tolérance | |||||||
| 13 | 0-10 | 23 | 0-16 | 61 | 43 | 29 | 6 | 33 | 4,5 x 7,5 x 4,1 | |
