NB
SMSTC16UU NB 16mm Slide Bush Bushings Miniature Motion Linear Bearing
563,42 $ CAD 760,61 CADVous économisez 197,19 $ CAD
SKU: Kit20756
UPC: 00193019121498
UPC: 00193019121498
Item: SMSTC16UU NB Bearing
Type: Linear Slide Bush
Retainer Material: Steel
Bearing Inner Diameter: 16mm
Quantity: One Bearing
Type: Linear Slide Bush
Retainer Material: Steel
Bearing Inner Diameter: 16mm
Quantity: One Bearing
| SMSTC16UU NB Two Side Cut Center Flange Anticorrosion Slide Bush Made in Japan:NB Linear Systems Nippon Bearing Linear Systems |

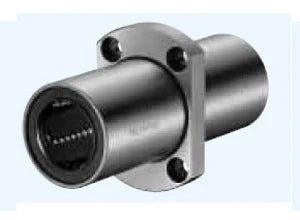

SMSTC16UU NB Two Side Cut Center Flange Linear Anticorrosion Slide Bush, Bearing is seals on both sides, The retainer material is steel, series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), Made in Japan.
|

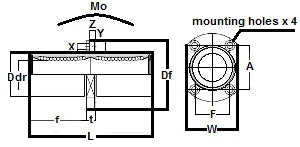

| Dimensions majeures | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| dr | D | L | Df | W | t | Un | F | X x Y x Z | ||
| mm | Tolérance | mm | Tolérance | |||||||
| 16 | 0-10 | 28 | 0-16 | 70 | 48 | 34 | 6 | 31 | 22 | 4,5 x 7,5 x 4,1 |
