NB
SMTC16UU NB 16mm Slide Bush Bushings Miniature Motion Linear Bearing
302,64 $ CAD 408,56 CADVous économisez 105,92 $ CAD
SKU: Kit20663
UPC: 00193019120606
UPC: 00193019120606
Item: SMTC16UU NB Bearing
Type: Linear Slide Bush
Retainer Material: Steel
Bearing Inner Diameter: 16mm
Quantity: One Bearing
Type: Linear Slide Bush
Retainer Material: Steel
Bearing Inner Diameter: 16mm
Quantity: One Bearing
| SMTC16UU NB Two Side Cut Center Flange Slide Bush Made in Japan:NB Linear Systems Nippon Bearing Linear Systems |
|
SMTC16UU NB Two Side Cut Center Flange Linear Slide Bush, Bearing is seals on both sides, The retainer material is steel, series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), Made in Japan.
|

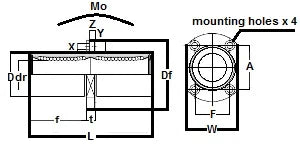

| Dimensions majeures | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| dr | D | L | Df | W | t | Un | F | X x Y x Z | ||
| mm | Tolérance | mm | Tolérance | |||||||
| 16 | 0-10 | 28 | 0-16 | 70 | 48 | 34 | 6 | 31 | 22 | 4,5 x 7,5 x 4,1 |
