SMTC20GUU NB 20mm Slide Bush Bushings Miniature Motion Linear Bearing
264,57 $ CAD 357,17 CADVous économisez 92,60 $ CAD
SKU: Kit20673
UPC: 00193019120699
UPC: 00193019120699
Item: SMTC20GUU NB Bearing
Type: Linear Slide Bush
Retainer Material: Resin
Bearing Inner Diameter: 20mm
Quantity: One Bearing
Type: Linear Slide Bush
Retainer Material: Resin
Bearing Inner Diameter: 20mm
Quantity: One Bearing

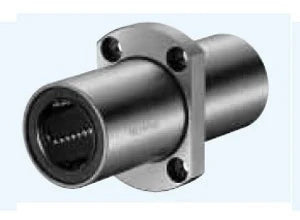

| SMTC20GUU NB Two Side Cut Center Flange Slide Bush Made in Japan:NB Linear Systems Nippon Bearing Linear Systems |
SMTC20GUU NB Two Side Cut Center Flange Linear Slide Bush, Bearing is seals on both sides, The retainer material is resin, series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), Made in Japan.
|

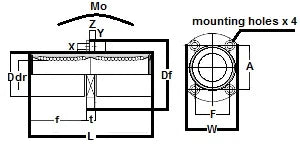

| Dimensions majeures | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| dr | D | L | Df | W | t | Un | F | X x Y x Z | ||
| mm | Tolérance | mm | Tolérance | |||||||
| 20 | 0-12 | 32 | 0-19 | 80 | 54 | 38 | 8 | 36 | 24 | 6,6 x 11 x 6,1 |
