NB
SMTC25UU NB 25mm Slide Bush Bushings Motion Linear Bearing
567,23 $ CAD 765,76 CADVous économisez 198,53 $ CAD
SKU: Kit20665
UPC: 00193019120613
UPC: 00193019120613
Item: SMTC25UU NB Bearing
Type: Linear Slide Bush
Retainer Material: Steel
Bearing Inner Diameter: 25mm
Quantity: One Bearing
Type: Linear Slide Bush
Retainer Material: Steel
Bearing Inner Diameter: 25mm
Quantity: One Bearing
| SMTC25UU NB Two Side Cut Center Flange Slide Bush Made in Japan:NB Linear Systems Nippon Bearing Linear Systems |
|
SMTC25UU NB Two Side Cut Center Flange Linear Slide Bush, Bearing is seals on both sides, The retainer material is steel, series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), Made in Japan.
|

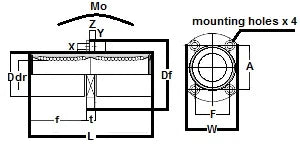

| Dimensions majeures | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| dr | D | L | Df | W | t | Un | F | X x Y x Z | ||
| mm | Tolérance | mm | Tolérance | |||||||
| 25 | 0-12 | 40 | 0-19 | 112 | 62 | 46 | 8 | 40 | 32 | 5,5 x 9 x 5,1 |
