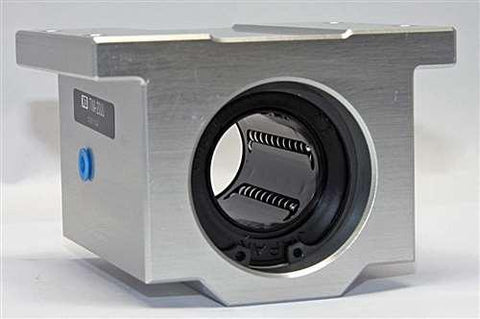

SWA24 NB 1-1/2" Ball Bushing Block Linear Motion
472,05 $ CAD 637,26 CADVous économisez 165,21 $ CAD
SKU: SWA24_NB
UPC: 00193019132807
UPC: 00193019132807
Item: SWA24 NB Bushing Bearing
Type: NB Ball Bushing Block Linear Motion
Shaft Diameter: 1 1/2" inch
Dynamic Load Rating: 2160 N
Static Load Rating: 4020 N
Type: NB Ball Bushing Block Linear Motion
Shaft Diameter: 1 1/2" inch
Dynamic Load Rating: 2160 N
Static Load Rating: 4020 N
| SWA24 Slide Unit Block Type Made in Japan:NB Linear Systems Nippon Bearing Linear Systems |
SWA24 Slide Unit Block Type, the inner diameter(bore) is 1 1/2" inch dimensions with steel retainer, series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), made in Japan.
|
| Dimensions majeures (pouces) | Dimensions de montage | |||||||||
| h | E | W | L | F | T | G | M | B | C | S |
| 1-3/4" | 2-3/8" | 4-3/4" | 4" | 3-1/4" | 1/2" | 2-7/8" | 3-1/2" | 4-1/8" | 2-1/2" | 9/32" |
