NB
SWF20 NB Bagues à billes 1-1/4" Mouvement linéaire à bride ronde
371,17 $ CAD 501,07 CADVous économisez 129,90 $ CAD
SKU: Kit8088
UPC: 00193019127193
UPC: 00193019127193
Item: SWF20 NB Bearing
Type: NB Linear Systems ball bushing
Shaft Diameter: 1 1/4" Inch
Dynamic load rating Cr: 1570 N
Static load rating Cor: 2740 N
Type: NB Linear Systems ball bushing
Shaft Diameter: 1 1/4" Inch
Dynamic load rating Cr: 1570 N
Static load rating Cor: 2740 N
| SWF20 NB:Made in Japan:NB Linear Systems Round Flange Type Nippon Bearing Linear Systems |
|

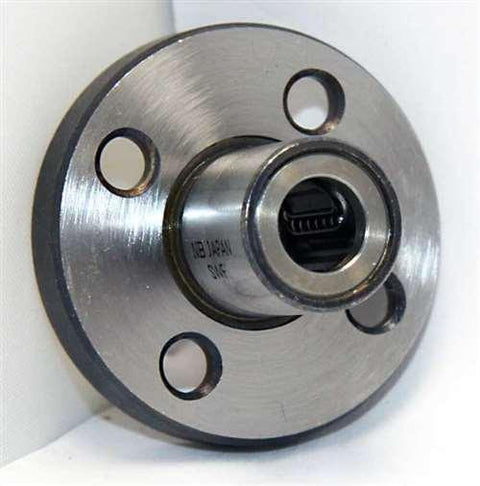

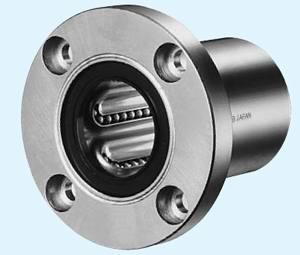

SWF20 NB 1 1/4" Bore linear motion ball bushings/bearings, the inner diameter(bore) is 1 1/4" inch dimensions with steel retainer, bearing is a high accuracy grade linear bushings, series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), made in Japan.
|
| Dimensions (pouces) | ||||||||
|---|---|---|---|---|---|---|---|---|
| dr | D | L | Df | t | P.C.D. | X | Y | Z |
| 1.25 | 2 | 2.625 | 3.125 | 0.313 | 2.563 | 0.281 | 0.406 | 0.256 |
