TRKC13UU NB 13mm Slide Bush Bushings Miniature Motion Linear Bearing
306,45 $ CAD 413,69 CADVous économisez 107,24 $ CAD
SKU: Kit21118
UPC: 00193019124253
UPC: 00193019124253
Item: TRKC13UU NB Bearing
Type: Linear Slide Bush
Bearing Inner Diameter: 13mm
Retainer Material: steel
Quantity: One Bearing
Type: Linear Slide Bush
Bearing Inner Diameter: 13mm
Retainer Material: steel
Quantity: One Bearing

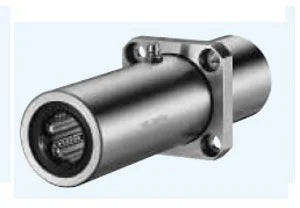

| TRKC13UU NB Triple Wide Intermediate Position Square Flange Slide Bush Made in Japan:NB Linear Systems |
TRKC13UU NB Triple Wide Intermediate Position Square Flange Miniature Slide Bush, The retainer material is steel, It is seals on both sides, series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), Made in Japan.
|

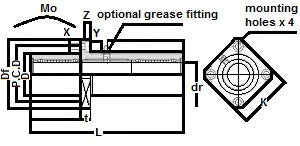

| Dimensions majeures | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| dr | D | L | Df | t | P.C.D | X x Y x Z | |||
| mm | Tolérance | mm | Tolérance | ||||||
| 13 | 0-15 | 28 | 0-21 | 84 | 46 | 6 | 38 | 4,5 x 7,5 x 4,1 | |
