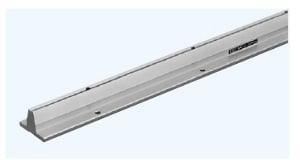

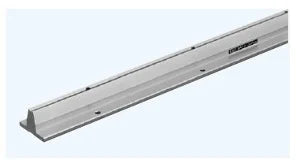

WA10-24PD NB Stainless Steel Shaft 24 inch Length Linear Motion
220,79 $ CAD 298,06 CADVous économisez 77,27 $ CAD
SKU: WA10-24PD-NB
UPC: 00193019133798
UPC: 00193019133798
NB NB Shaft Support Rail
Shaft Diameter: 5/8" inch
Length: 24" Inch
Material: Aluminum Alloy
Shaft Diameter: 5/8" inch
Length: 24" Inch
Material: Aluminum Alloy
| WA10-24PD NB Shaft Support Rail:NB Linear Systems 24" Inch (609.6mm) Length 5/8" inch Diameter Shaft |
WA10-24PD NB Shaft Support Rail, 5/8" Diameter x 24" inch Long Shaft.
|

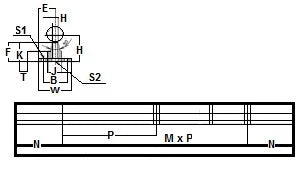

| Dimensions majeures | Dimensions de montage | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| H | E | W | F | T | K | J | h1 | B | N | MxP | S1 | S2 | ||
| hole | bolt | hole | bolt | |||||||||||
| 1-1/4" | 13/16" | 1-5/8" | 27/32" | 1/4" | 27/64" | 1/2" | 17/64" | 1-1/8" | 2" | 5x4 | 13/64" | 8 | 13/64" | 8 |
