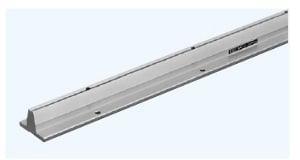

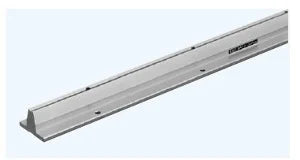

WA16-24PD NB Stainless Steel Shaft 24 inch Length Linear Motion
260,77 $ CAD 352,02 CADVous économisez 91,25 $ CAD
SKU: WA16-24PD-NB
UPC: 00193019133811
UPC: 00193019133811
NB NB Shaft Support Rail
Shaft Diameter: 1" inch
Length: 24" Inch
Material: Aluminum Alloy
Shaft Diameter: 1" inch
Length: 24" Inch
Material: Aluminum Alloy
| WA16-24PD NB Shaft Support Rail:NB Linear Systems 24" Inch (609.6mm) Length 1" inch Diameter Shaft |
WA16-24PD NB Shaft Support Rail, 1" Diameter x 24" inch Long Shaft.
|

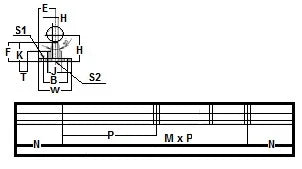

| Dimensions majeures | Dimensions de montage | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| H | E | W | F | T | K | J | h1 | B | N | MxP | S1 | S2 | ||
| hole | bolt | hole | bolt | |||||||||||
| 1-3/4" | 1-1/16" | 2-1/8" | 1-9/32" | 1/4" | 23/32" | 7/8" | 23/64" | 1-1/2" | 3 | 3x6 | 9/32" | 1/4" | 9/32" | 1/4" |
