AK13GUU NB 13mm Compact Block Unit Motion Linear Bearing
156,07 $ CAD 210,70 CADVous économisez 54,63 $ CAD
SKU: AK13GUU
UPC: 00193019106389
UPC: 00193019106389
Item: AK13GUU NB Bearing
Type: Linear Ball Bushing
Shaft Diameter: 13mm
Quantity: One Bearing
Dynamic load rating Cr: 510 N
Type: Linear Ball Bushing
Shaft Diameter: 13mm
Quantity: One Bearing
Dynamic load rating Cr: 510 N

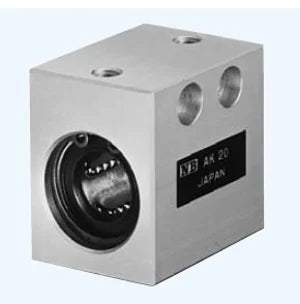

| AK13GUU NB Compact Block:Slide Unit Made in Japan:NB Linear Systems |
AK13GUU NB Compact Block, The inner diameter is 13mm, The retainer material is resin, Series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), made in Japan.
|

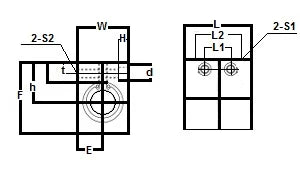

| Diamètre de contact intérieur | Dimensions extérieures | Dimensions de montage | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | Tolérance | h | E | W | L | F | L2 | S1 | L1 | t | S2 | d | H |
| 13 | 0-9 | 25 | 15 | 30 | 42 | 43 | 28 | M6 | 16 | 7 | M6 | 9 | 7 |
