NB
AK30GWUU NB 30mm Double Wide Compact Block Unit Motion Linear Bearing
512,03 $ CAD 691,22 CADVous économisez 179,19 $ CAD
SKU: AK30GWUU_NB
UPC: 00193019106471
UPC: 00193019106471
Item: AK30GWUU NB Bearing
Type: Linear Ball Bushing
Shaft Diameter: 30mm
Quantity: One Bearing
Dynamic load rating Cr: 1570 N
Type: Linear Ball Bushing
Shaft Diameter: 30mm
Quantity: One Bearing
Dynamic load rating Cr: 1570 N
| AK30GWUU NB Double Wide Compact Block:Slide Unit Made in Japan:NB Linear Systems |
|
AK30GWUU NB Double Wide Compact Block, The inner diameter is 30mm, The retainer material is resin, Series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), made in Japan.
|

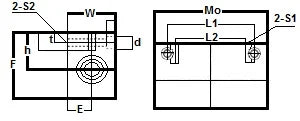

| Diamètre de contact intérieur | Dimensions extérieures | Dimensions de montage | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | Tolérance | h | E | W | L | F | L2 | S1 | L1 | t | S2 | d | H |
| 30 | 0-10 | 40 | 29 | 58 | 74 | 71 | 44 | M10 | 22 | 9 | M10 | 14 | 10 |
