Palier Ă brides F1236 - Complet - 3/8 x 1-1/8 x 1/2" pouce
UPC: 00193019039496
Type: Unground Flanged Ball Bearing
Size: 3/8" x 1-1/8" x 1/2" Inch
Size: 0.375" x 1.125" x 0.5" Inch

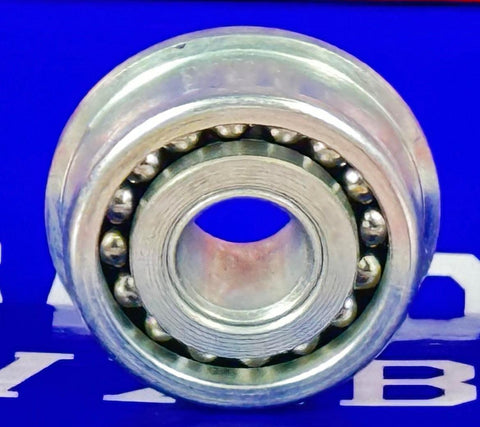

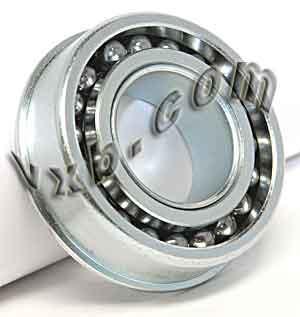

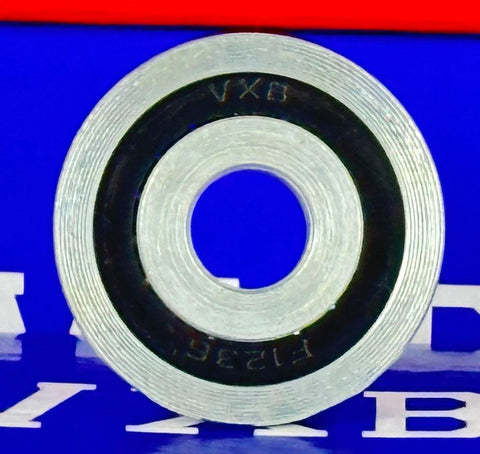

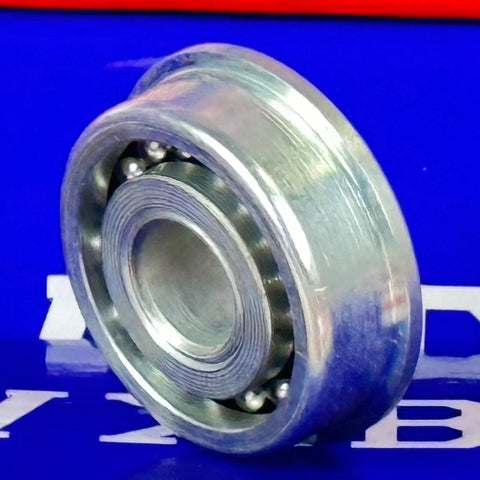

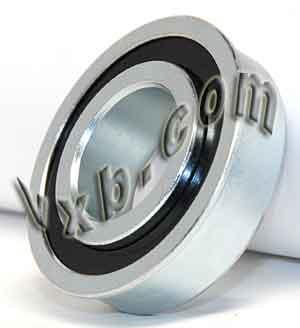

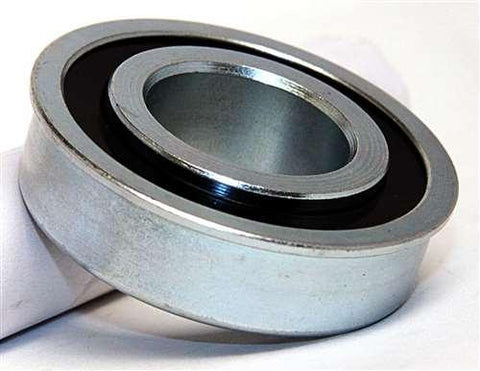

F1236 Flanged Ball Bearing - Full Complement
✔️ No Cage - 3/8" Bore Diameter
The F1236 flanged ball bearing is a full complement design with no cage, allowing for maximum ball count to support higher loads. Built for durability and precision, it’s ideal for applications requiring strong radial support and a secure flange mount. Pack size: 1 bearing.
âś… Bore Diameter (ID): 3/8" (0.375")
âś… Outer Diameter (OD): 1-1/8" (1.125")
âś… Inner Ring Width: 1/2" (0.5")
âś… Outer Ring Width: 3/8" (0.375")
âś… G Dimension: 1-1/4" (1.25")
âś… Ball Size: 5/32"
âś… Type: Full complement flanged ball bearing (no cage)

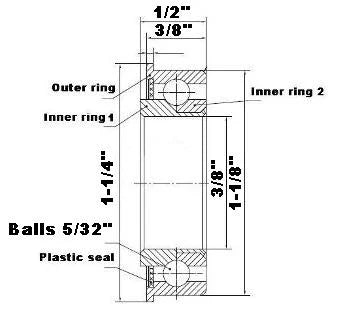

Tableau des dimensions (pouces)
| Diamètre de l’alésage | Diamètre extérieur | Largeur de l’anneau intérieur | Largeur de l’anneau extérieur | G Dimension |
|---|---|---|---|---|
| 3/8" | 1-1/8" | 1/2" | 3/8" | 1-1/4" |
đź’ˇ Why choose a full complement flanged ball bearing?
It maximizes load capacity while maintaining compact size.
-
No cage allows more balls for increased strength
-
Flange ensures precise, secure mounting
-
Handles higher radial loads than caged designs
-
Ideal for machinery with space limits but high load demands
If you want a tough, high-capacity bearing that mounts securely, this one’s a smart choice, order today and keep your equipment running at its best.
