LFR5201-10NPP 12 mm de diamètre intérieur x 10 mm à rainure en U
UPC: 00193019294406

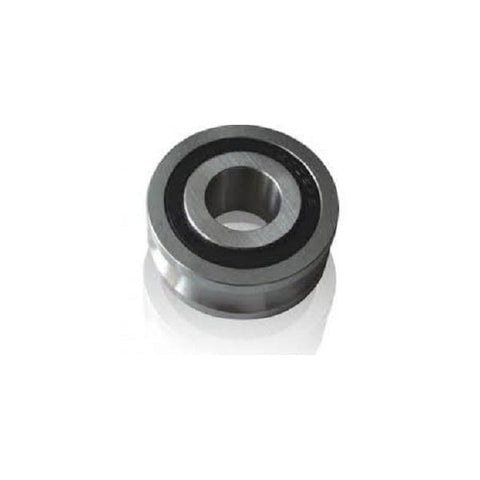

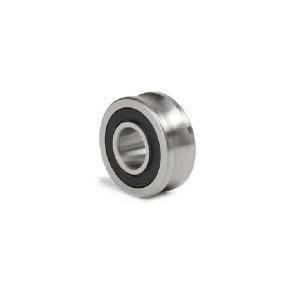

LFR5201-10NPP U-Groove Track Roller Bearing - 12mm ID
✔️ Rubber-sealed 10mm U-groove roller for rail and guide systems
The LFR5201-10NPP is a U-groove track roller bearing with a 12mm inner diameter, designed to roll along round or square rails with smooth precision. It’s sealed on both sides to keep debris out and pre-lubricated for long-lasting motion. Sold as one bearing.
âś… Inner diameter: 12mm
âś… U-Groove width: 10mm
âś… Outer diameter: 35mm
âś… Width: 15.9mm
âś… Load rating Cw: 8.5 kN
âś… Load rating Cow: 5.1 kN
âś… Rubber seals for clean operation
âś… Ideal for linear guides, track rollers, and automated setups

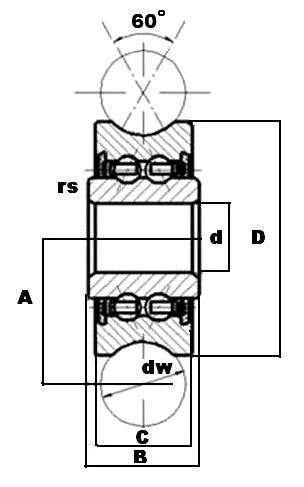

Tableau des dimensions :
| Spec | Valeur |
|---|---|
| Shaft Diameter (dw) | 10 mm |
| Alésage (d) | 12 mm |
| Diamètre extérieur (D) | 35.0mm |
| Largeur (C/B) | 15,9 mm |
| Groove Width (A) | 20.65mm |
| Rayon (rs) | 0,3 mm |
đź’ˇ What makes U-groove bearings ideal for track-based movement?
They hold rails steady while reducing wear and friction.
-
Center tightly on circular or square guide rails
-
Support both vertical and lateral motion loads
-
Great for sliding doors, CNC rails, or conveyor systems
-
Sealed design prevents contamination and improves life span
If your system needs guided glide and solid support - this U-groove roller’s ready to roll!
