LMB122026AJ 3/4 inch Adjustable Linear Motion Ball Bushing
LMB122026AJ 3/4 inch Adjustable Linear Motion Ball Bushing
NB

LMB122026AJ 3/4"inch Adjustable Linear Motion Bearing Ball Bushing


112,29 $ CAD 151,59 CADVous économisez 39,30 $ CAD
SKU: LMB122026AJ
UPC: 00193019129630






LMB122026AJ:Clearance Adjustable Type Ball Bushing
Made in Japan:NB Linear Systems

3" LMB122026AJ Clearance Adjustable Type Linear Motion Ball Bushing,3" Bore inch type linear motion ball bushing/bearing, inner diameter(bore) is3" inch,high accuracy grade linear bushings, inch series is mainly used in the USA, NB brand (Nippon Bearing Linear Systems), made in Japan.

  • LMB122026AJ Ball Bearing
  • Silent Ball à mouvement linéaire
  • Circuit de boule : 6
  • Diamètre de l’arbre : 3" pouce
  • Taille : 3 » x 4 1/2 » x 6 » po
  • Diamètre intérieur : 3" pouce
  • Diamètre extérieur : 4 1/2" pouce
  • Longueur : 6" pouce
  • Charge dynamique : 7 350 N
  • Charge statique : 16 000 N
The NB slide bush is a linear motion mechanism utilizing the rotational motion of ball elements. Since linear motion is obtained using a simple mechanism, the slide bush can be used in a wide variety of applications, including transportation equipment, food processing equipment, and semiconductor equipment. The NB slide bush uses a round shaft for the guide, resulting in effective space utilization, which allows for compact designs.
The raceway surface is precision ground. Since the contact surface between the ball elements and the raceway surface is minimized, the NB slide bush provides low friction when compared to other linear motion mechanisms.

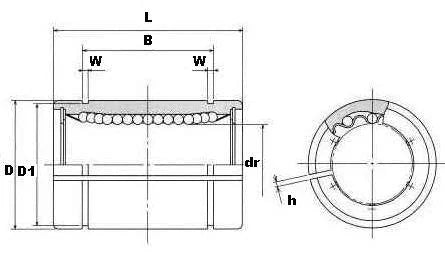

Dimensions principales et tolérance (pouces) Excentricité
(pouce)		 Jeu radial
(pouce)
dr D L B W D1 h
pouce Tolérance pouce Tolérance pouce Tolérance pouce Tolérance
3/4" 0-.0004 1-1/4" 0-.00065 1-5/8" 0-.008 1.1657" 0-.008 0.056" 1.176" .06" .0006 -.0002
