LMB162536AJ 1"inch Adjustable Linear Motion Bearing Ball Bushing
127,52 $ CAD 172,15 CADVous économisez 44,63 $ CAD
SKU: LMB162536AJ
UPC: 00193019129661
UPC: 00193019129661
| LMB162536AJ:Clearance Adjustable Type Ball Bushing Made in Japan:NB Linear Systems |
|
1" LMB162536AJ Clearance Adjustable Type Linear Motion Ball Bushing, 1" Bore inch type linear motion ball bushing/bearing, inner diameter(bore) is 1" inch,high accuracy grade linear bushings, inch series is mainly used in the USA, NB brand (Nippon Bearing Linear Systems), made in Japan.
The NB slide bush is a linear motion mechanism utilizing the rotational motion of ball elements. Since linear motion is obtained using a simple mechanism, the slide bush can be used in a wide variety of applications, including transportation equipment, food processing equipment, and semiconductor equipment. The NB slide bush uses a round shaft for the guide, resulting in effective space utilization, which allows for compact designs. The raceway surface is precision ground. Since the contact surface between the ball elements and the raceway surface is minimized, the NB slide bush provides low friction when compared to other linear motion mechanisms. |

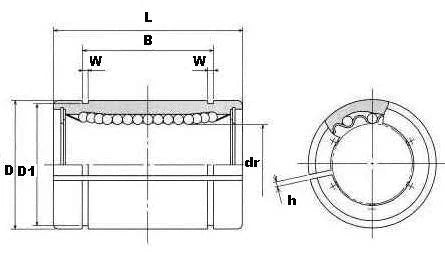

| Dimensions principales et tolérance (pouces) | Excentricité (pouce) |
Jeu radial (pouce) |
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| dr | D | L | B | W | D1 | h | ||||||
| pouce | Tolérance | pouce | Tolérance | pouce | Tolérance | pouce | Tolérance | |||||
| 1" | 0-.0004 | 1-9/16" | 0-.00065 | 2-1/4" | 0-.012 | 1-3/4" | 0-.012 | 1/16" | 1-15/32" | 1/16" | 0.0006" | 0-.0002" |
