NB SWF24GWUU bagues à rotule de 1-1/2" Aile ronde Mouvement linéaire large
987,92 $ CAD1 333,69 CADVous économisez 345,77 $ CAD
SKU: Kit15879
UPC: 00193019110249
UPC: 00193019110249
Item: SWF24GWUU Bearing
Type: Linear Ball Bushing
Quantity: One Bearing
Retainer Material: Resin
Type: Linear Ball Bushing
Quantity: One Bearing
Retainer Material: Resin

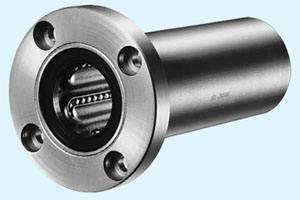

| SWF24GWUU:Made in Japan:NB Linear Systems Sealed Round Flange Double Wide Type Nippon Bearing Linear Systems |
SWF24GWUU 1-1/2" Bore Sealed linear motion ball bushings/bearings, the inner diameter(bore) is 1-1/2" inch dimensions with Resin retainer, bearing is a high accuracy grade linear bushings, series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), made in Japan.
|

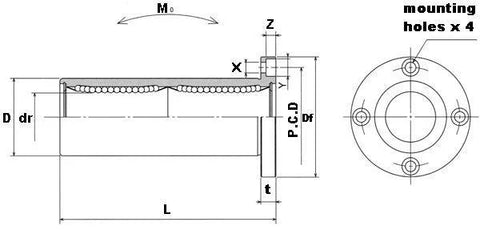

| Dimensions majeures | ||||||||
|---|---|---|---|---|---|---|---|---|
| dr | D | L | DF | t | P.C.D. | X | Y | Z |
| 1-1/2" | 2-3/8" | 5-11/16" | 3-3/4" | 1/2" | 3-1/16" | 11/32" | 1/2" | 21/64" |
