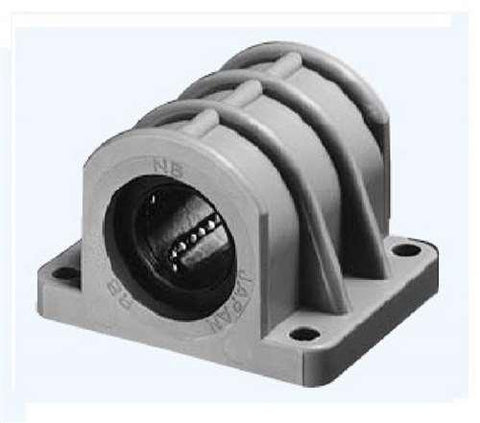

RBW10 NB 5/8"inch Resin Block Unit Motion Linear Bearing
110,39 $ CAD 149,02 CADVous économisez 38,63 $ CAD
SKU: RBW10_NB
UPC: 00193019130612
UPC: 00193019130612
Item: RBW 10 NB Bearing
Type: Linear Ball Bushing
Inner Contact Diameter: 0.625 inch
Quantity: One Bearing
Dynamic load rating Cr: 774 N
Type: Linear Ball Bushing
Inner Contact Diameter: 0.625 inch
Quantity: One Bearing
Dynamic load rating Cr: 774 N
| RBW10 NB 5/8" inch Resin Block Type:Slide Unit Made in Japan:NB Linear Systems Nippon Bearing Linear Systems |
RBW10 NB 0.5/8" inch Resin Block Slide Unit, The inner contact diameter is 0.625", The retainer material is resin, Series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), made in Japan.
|

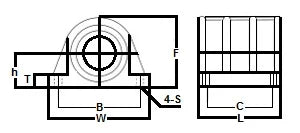

| Majar Dimensions | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Diamètre de contact intérieur | Dimensions extérieures | Dimensions | |||||||
| pouce | Tolérance | h | W | L | F | T | B | C | S |
| 0.625 | 0.0004 | 0.875 | 2.500 | 1.843 | 1.625 | 0.375 | 2.125 | 1.125 | 0.189 |
