RBW12 NB 3/4" Resin Block Unit Motion Linear Bearing
119,91 $ CAD 161,87 CADVous économisez 41,96 $ CAD
SKU: RBW12
UPC: 00193019130629
UPC: 00193019130629
Item: RBW 12 NB Bearing
Type: Linear Ball Bushing
Inner Contact Diameter: 0.75inch
Quantity: One Bearing
Dynamic load rating Cr: 862 N
Type: Linear Ball Bushing
Inner Contact Diameter: 0.75inch
Quantity: One Bearing
Dynamic load rating Cr: 862 N
| RBW12 NB 3/4" inch Resin Block Type:Slide Unit Made in Japan:NB Linear Systems Nippon Bearing Linear Systems |

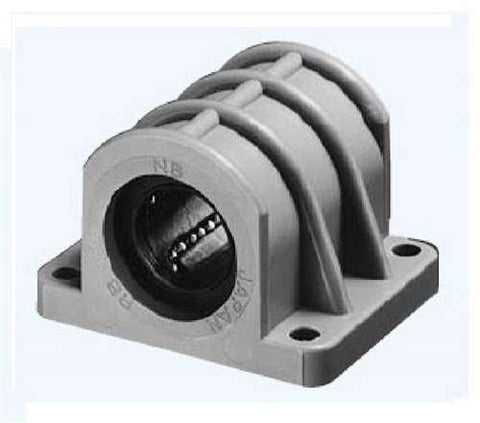

RBW12 NB 3/4" inch Resin Block Slide Unit, The inner contact diameter is 0.75", The retainer material is resin, Series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), made in Japan.
|

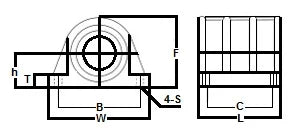

| Majar Dimensions | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Diamètre de contact intérieur | Dimensions extérieures | Dimensions | |||||||
| pouce | Tolérance | h | W | L | F | T | B | C | S |
| 0.75 | 0.0004 | 0.937 | 2.75 | 1.968 | 1.75 | 0.4063 | 2.375 | 1.25 | 0.189 |
