VXB

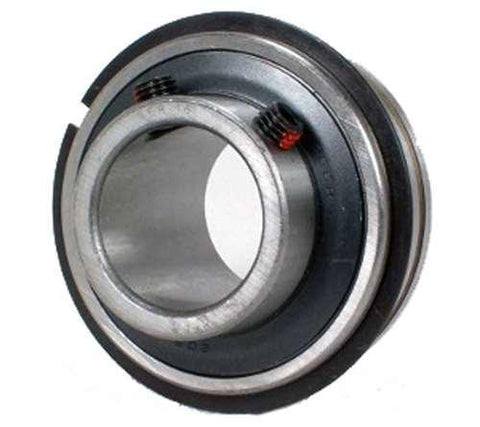

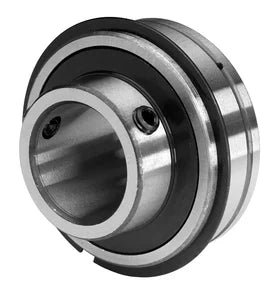

SER-25mm Bearing Insert 25mm Mounted
266,48 $ CAD 359,73 CADVous économisez 93,25 $ CAD
SKU: Kit19178
UPC: 00193019269527
UPC: 00193019269527
Item: SER-25mm Bearing
Type: Bearing Insert
Shaft Diameter: 25mm
Dynamic Load Rating: 14011 N
Static Load Rating: 7161 N
Type: Bearing Insert
Shaft Diameter: 25mm
Dynamic Load Rating: 14011 N
Static Load Rating: 7161 N
| Cet article sera expédié dans un délai d’une semaine Retours assujettis à des frais de restockage de 15% |
|
SER-25mm Bearing Insert Set Screw Locking 25mm Inner Diameter |
SER-25mm Bearing Insert, Bearing is Standard load capacity, bearing is Wide inner ring with cylindrical outer ring and snap ring, Bearing has relubrication groove with oil hole on side opposite of set screws, bearing has anti-rotation pin on side opposite grease groove, bearing is nylon patched class 3A Set Screws are standard, Standard seal is R-Seal.
|

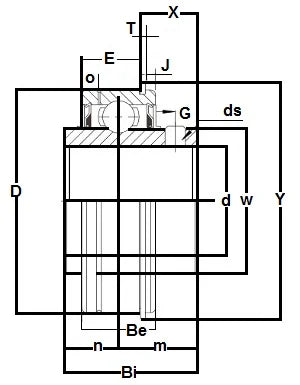

| Dimensions (mm) | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| D | Bi | Be | n | m | E | W | o | T | J | G | Y | X | ds(UNF-Thread) |
| 52 | 34.9 | 19.1 | 13.1 | 21.8 | 15.3 | 33.7 | 5.2 | 1.35 | 2.46 | 5.6 | 57.9 | 16.06 | M16XP1.0 |
