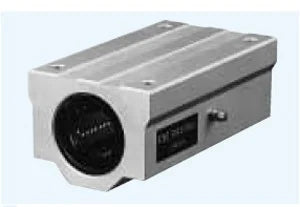

SMA25GWUU NB 25mm Slide Bush Bushings Motion Linear Bearing
399,72 $ CAD 539,62 CADVous économisez 139,90 $ CAD
SKU: Kit21206
UPC: 00193019125106
UPC: 00193019125106
Item: SMA25GWUU NB Bearing
Type: Linear Ball Bushing
Shaft Diameter: 25mm
Quantity: One Bearing
Dynamic load rating Cr: 980 N
Type: Linear Ball Bushing
Shaft Diameter: 25mm
Quantity: One Bearing
Dynamic load rating Cr: 980 N
| SMA25GWUU NB Double Wide Block Type:Slide Unit Made in Japan:NB Linear Systems Nippon Bearing Linear Systems |
SMA25GWUU NB Double Wide Block Slide Unit, The inner diameter is 25mm, Bearing is seals on both sides, The retainer material is resin, Bearing is a high accuracy grade linear bushings, Series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), made in Japan.
|

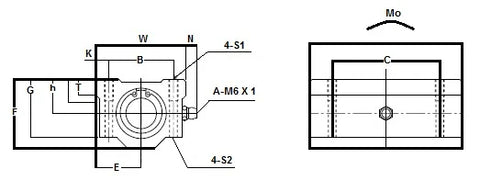

| Dimensions extérieures | Dimensions de montage | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| h | E | W | L | F | G | T | B | C | K | S1 | S2 |
| 26 | 38 | 76 | 130 | 51.5 | 42 | 12 | 54 | 50 | 11 | M8 | 7 |
