NB
SMA35GUU NB 35mm Slide Bush Bushings Motion Linear Bearing
342,62 $ CAD 462,52 CADVous économisez 119,90 $ CAD
SKU: Kit21192
UPC: 00193019124970
UPC: 00193019124970
Item: SMA35GUU NB Bearing
Type: Linear Ball Bushing
Shaft Diameter: 35mm
Quantity: One Bearing
Dynamic load rating Cr: 1670 N
Type: Linear Ball Bushing
Shaft Diameter: 35mm
Quantity: One Bearing
Dynamic load rating Cr: 1670 N

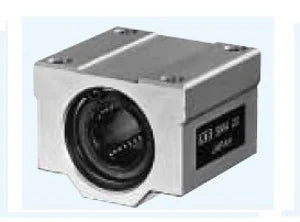

| SMA35GUU NB Block Type:Slide Unit Made in Japan:NB Linear Systems Nippon Bearing Linear Systems |
SMA35GUU NB Block Slide Unit, The inner diameter is 35mm, Bearing is seals on both sides, The retainer material is resin, Bearing is a high accuracy grade linear bushings, Series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), made in Japan.
|

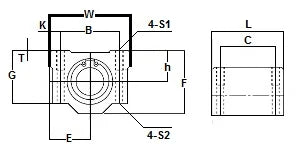

| Dimensions extérieures | Dimensions de montage | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| h | E | W | L | F | G | T | B | C | K | S1 | S2 |
| 34 | 45 | 90 | 80 | 68 | 54 | 18 | 58 | 58 | 10 | M8 | 7 |
