NB
SMA3GW NB 3mm Slide Bush Bushings Miniature Motion Linear Bearing
203,66 $ CAD 274,94 CADVous économisez 71,28 $ CAD
SKU: Kit21196
UPC: 00193019125014
UPC: 00193019125014
Item: SMA3GW NB Bearing
Type: Linear Ball Bushing
Shaft Diameter: 3mm
Quantity: One Bearing
Dynamic load rating Cr: 69 N
Type: Linear Ball Bushing
Shaft Diameter: 3mm
Quantity: One Bearing
Dynamic load rating Cr: 69 N

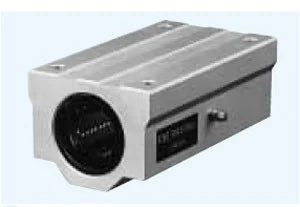

| SMA3GW NB Double Wide Block Type:Slide Unit Made in Japan:NB Linear Systems Nippon Bearing Linear Systems |
SMA3GW NB Double Wide Block Slide Unit, The inner diameter is 3mm, Bearing is a high accuracy grade linear bushings, The retainer material is resin, Series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), made in Japan.
|

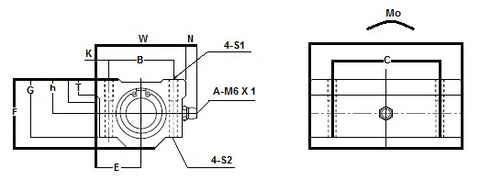

| Dimensions extérieures | Dimensions de montage | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| h | E | W | L | F | G | B | C | K | S1 |
| 5 | 8 | 16 | 23 | 10 | 8 | 11 | 8 | 2.5 | M2 |
