SMA8GUU NB 8mm Slide Bush Bushings Miniature Motion Linear Bearing
104,68 $ CAD 141,31 CADvous économisez 36,63 $ CAD
SKU: Kit21183
UPC: 00193019124895
UPC: 00193019124895
Item: SMA8GUU NB Bearing
Type: Linear Ball Bushing
Shaft Diameter: 8mm
Quantity: One Bearing
Dynamic load rating Cr: 274 N
Type: Linear Ball Bushing
Shaft Diameter: 8mm
Quantity: One Bearing
Dynamic load rating Cr: 274 N

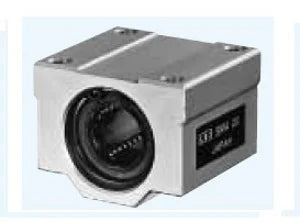

| SMA8GUU NB Block Type:Slide Unit Made in Japan:NB Linear Systems Nippon Bearing Linear Systems |
SMA8GUU NB Block Slide Unit, The inner diameter is 8mm, Bearing is seals on both sides, The retainer material is resin, Bearing is a high accuracy grade linear bushings, Series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), made in Japan.
|

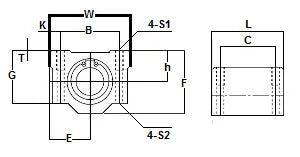

| Dimensions extérieures | Dimensions de montage | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| h | E | W | L | F | G | T | B | C | K | S1 | S2 |
| 11 | 17 | 34 | 30 | 22 | 18 | 6 | 24 | 18 | 5 | M4 | 3.4 |
