NB

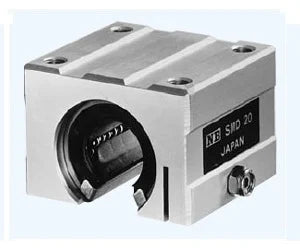

SMD25GUU NB 25mm Pillow Block Unit Motion Linear Bearing
611,02 $ CAD 824,88 CADVous économisez 213,86 $ CAD
SKU: SMD25GUU_NB
UPC: 00193019131145
UPC: 00193019131145
Item: SMD25GUU NB Bearing
Type: Linear Ball Bushing
Shaft Diameter: 25mm
Quantity: One Bearing
Dynamic load rating Cr: 980 N
Type: Linear Ball Bushing
Shaft Diameter: 25mm
Quantity: One Bearing
Dynamic load rating Cr: 980 N
| SMD25GUU NB Open Block:Slide Unit With Clearance Adjustable Type Made in Japan:NB Linear Systems |
SMD25GUU NB Open Block With Clearance Adjustable Block Slide Unit, The inner diameter is 25mm, The retainer material is resin, Series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), made in Japan.
|

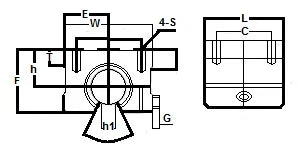

| Diamètre de contact intérieur | Dimensions extérieures | Dimensions de montage | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| h | E | W | L | F | T | G | h1 | B | C | S | |
| 25 | 27 | 38 | 76 | 65 | 47 | 14 | 7 | 11.5 | 54 | 40 | M6 |
