SMST12GUU NB 12mm Slide Bush Bushings Miniature Motion Linear Bearing
178,91 $ CAD 241,53 CADVous économisez 62,62 $ CAD
SKU: Kit20724
UPC: 00193019121207
UPC: 00193019121207
Item: SMST12GUU NB Bearing
Type: Linear Slide Bush
Retainer Material: Resin
Bearing Inner Diameter: 12mm
Quantity: One Bearing
Type: Linear Slide Bush
Retainer Material: Resin
Bearing Inner Diameter: 12mm
Quantity: One Bearing
| SMST12GUU NB Two Side Cut Flange Anticorrosion Slide Bush Made in Japan:NB Linear Systems Nippon Bearing Linear Systems |

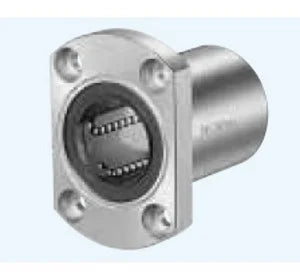

SMST12GUU NB Two Side Cut Flange Linear Anticorrosion Slide Bush, The retainer material is resin, series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), Made in Japan.
|
| Dimensions majeures | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| dr | D | L | Df | W | t | Un | X x Y x Z | ||
| mm | Tolérance | mm | Tolérance | ||||||
| 12 | 0-9 | 21 | 0-16 | 30 | 42 | 27 | 6 | 32 | 4,5 x 7,5 x 4,1 |
