SMST20GUU NB 20mm Slide Bush Bushings Miniature Motion Linear Bearing
247,44 $ CAD 334,04 CADVous économisez 86,60 $ CAD
SKU: Kit20727
UPC: 00193019121238
UPC: 00193019121238
Item: SMST20GUU NB Bearing
Type: Linear Slide Bush
Retainer Material: Resin
Bearing Inner Diameter: 20mm
Quantity: One Bearing
Type: Linear Slide Bush
Retainer Material: Resin
Bearing Inner Diameter: 20mm
Quantity: One Bearing

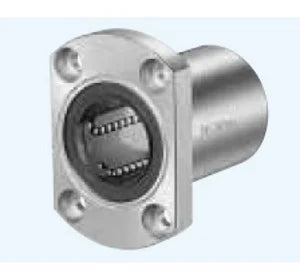

| SMST20GUU NB Two Side Cut Flange Anticorrosion Slide Bush Made in Japan:NB Linear Systems Nippon Bearing Linear Systems |
SMST20GUU NB Two Side Cut Flange Linear Anticorrosion Slide Bush, The retainer material is resin, series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), Made in Japan.
|

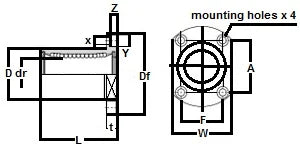

| Dimensions majeures | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| dr | D | L | Df | W | t | F | Un | X x Y x Z | ||
| mm | Tolérance | mm | Tolérance | |||||||
| 20 | 0-10 | 32 | 0-19 | 42 | 54 | 38 | 8 | 36 | 24 | 5,5 x 9 x 5,1 |
