NB
SMST30GWUU NB 30mm Slide Bush Bushings Motion Linear Bearing
1 039,30 $ CAD 1 403,05 CADVous économisez 363,75 $ CAD
SKU: Kit20750
UPC: 00193019121436
UPC: 00193019121436
Item: SMST30GWUU NB Bearing
Type: Linear Slide Bush
Retainer Material: Resin
Bearing Inner Diameter: 30mm
Quantity: One Bearing
Type: Linear Slide Bush
Retainer Material: Resin
Bearing Inner Diameter: 30mm
Quantity: One Bearing
| SMST30GWUU NB Two Side Cut Double Wide Flange Anticorrosion Slide Bush Made in Japan:NB Linear Systems Nippon Bearing Linear Systems |
SMST30GWUU NB Two Side Cut Double Wide Flange Anticorrosion Slide Bush, The retainer material is resin, series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), Made in Japan.
|

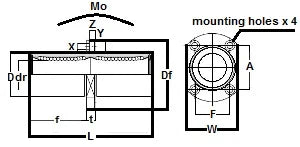

| Dimensions majeures | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| dr | D | L | Df | W | t | Un | F | X x Y x Z | ||
| mm | Tolérance | mm | Tolérance | |||||||
| 30 | 0-12 | 45 | 0-19 | 123 | 74 | 51 | 10 | 49 | 35 | 6,6 x 11 x 6,1 |
