SMSTC10GUU NB 10mm Slide Bush Bushings Miniature Motion Linear Bearing
329,29 $ CAD 444,53 CADVous économisez 115,24 $ CAD
SKU: Kit20762
UPC: 00193019121559
UPC: 00193019121559
Item: SMSTC10GUU NB Bearing
Type: Linear Slide Bush
Retainer Material: resin
Bearing Inner Diameter: 10mm
Quantity: One Bearing
Type: Linear Slide Bush
Retainer Material: resin
Bearing Inner Diameter: 10mm
Quantity: One Bearing

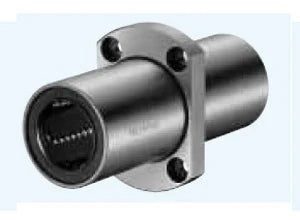

| SMSTC10GUU NB Two Side Cut Center Flange Anticorrosion Slide Bush Made in Japan:NB Linear Systems Nippon Bearing Linear Systems |
SMSTC10GUU NB Two Side Cut Center Flange Linear Anticorrosion Slide Bush, Bearing is seals on both sides, The retainer material is resin, series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), Made in Japan.
|

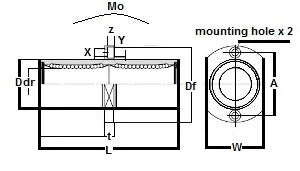

| Dimensions majeures | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| dr | D | L | Df | W | t | Un | X x Y x Z | |||
| mm | Tolérance | mm | Tolérance | |||||||
| 10 | 0-10 | 19 | 0-16 | 55 | 40 | 25 | 6 | 29 | 4,5 x 7,5 x 4,1 | |
