NB
SMSTC12GUU NB 12mm Slide Bush Bushings Miniature Motion Linear Bearing
363,55 $ CAD 490,79 CADvous économisez 127,24 $ CAD
SKU: Kit20763
UPC: 00193019121566
UPC: 00193019121566
Item: SMSTC12GUU NB Bearing
Type: Linear Slide Bush
Retainer Material: resin
Bearing Inner Diameter: 12mm
Quantity: One Bearing
Type: Linear Slide Bush
Retainer Material: resin
Bearing Inner Diameter: 12mm
Quantity: One Bearing
| SMSTC12GUU NB Two Side Cut Center Flange Anticorrosion Slide Bush Made in Japan:NB Linear Systems Nippon Bearing Linear Systems |
SMSTC12GUU NB Two Side Cut Center Flange Linear Slide Bush, Bearing is seals on both sides, The retainer material is resin, series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), Made in Japan.
|

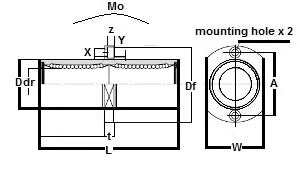

| Dimensions majeures | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| dr | D | L | Df | W | t | Un | X x Y x Z | |||
| mm | Tolérance | mm | Tolérance | |||||||
| 12 | 0-10 | 21 | 0-16 | 57 | 42 | 27 | 6 | 32 | 4,5 x 7,5 x 4,1 | |
