NB

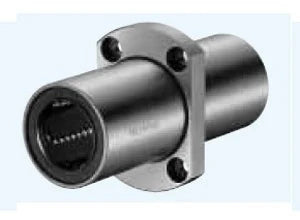

SMSTC30GUU NB 30mm Slide Bush Bushings Motion Linear Bearing
$1,235.36 CAD
$1,667.72 CADyou save $432.36 CAD
SKU: Kit20767
UPC: 00193019121603
UPC: 00193019121603
Item: SMSTC30GUU Bearing
Type: Linear Slide Bush
Retainer Material: resin
Bearing Inner Diameter: 30mm
Quantity: One Bearing
Type: Linear Slide Bush
Retainer Material: resin
Bearing Inner Diameter: 30mm
Quantity: One Bearing
| SMSTC30GUU Two Side Cut Center Flange Anticorrosion Slide Bush Made in Japan:NB Linear Systems Nippon Bearing Linear Systems |
SMSTC30GUU Two Side Cut Center Flange Linear Anticorrosion Slide Bush, Bearing is seals on both sides, The retainer material is resin, series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), Made in Japan.
|

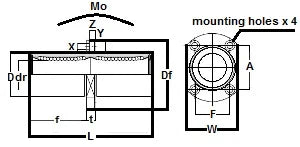

| Dimensions majeures | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| dr | D | L | Df | W | t | Un | F | X x Y x Z | ||
| mm | Tolérance | mm | Tolérance | |||||||
| 30 | 0-12 | 45 | 0-19 | 123 | 74 | 51 | 10 | 49 | 35 | 6,6 x 11 x 6,1 |
