NB
SMSTC30UU NB 30mm Slide Bush Bushings Motion Linear Bearing
$1,539.92 CAD
$2,078.88 CADyou save $538.96 CAD
SKU: Kit20759
UPC: 00193019121528
UPC: 00193019121528
Item: SMSTC30UU NB Bearing
Type: Linear Slide Bush
Retainer Material: Steel
Bearing Inner Diameter: 30mm
Quantity: One Bearing
Type: Linear Slide Bush
Retainer Material: Steel
Bearing Inner Diameter: 30mm
Quantity: One Bearing
| SMSTC30UU NB Two Side Cut Center Flange Anticorrosion Slide Bush Made in Japan:NB Linear Systems Nippon Bearing Linear Systems |

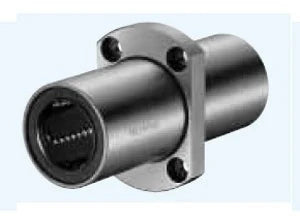

SMSTC30UU NB Two Side Cut Center Flange Linear Anticorrosion Slide Bush, Bearing is seals on both sides, The retainer material is steel, series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), Made in Japan.
|

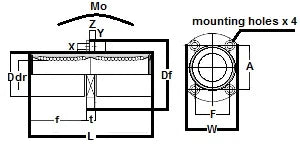

| Dimensions majeures | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| dr | D | L | Df | W | t | Un | F | X x Y x Z | ||
| mm | Tolérance | mm | Tolérance | |||||||
| 30 | 0-12 | 45 | 0-19 | 123 | 74 | 51 | 10 | 49 | 35 | 6,6 x 11 x 6,1 |
