NB
SMSTC6UU NB 6mm Slide Bush Bushings Miniature Motion Linear Bearing
397,82 $ CAD 537,04 CADVous économisez 139,22 $ CAD
SKU: Kit20751
UPC: 00193019121443
UPC: 00193019121443
Item: SMSTC6UU NB Bearing
Type: Linear Slide Bush
Retainer Material: Steel
Bearing Inner Diameter: 6mm
Quantity: One Bearing
Type: Linear Slide Bush
Retainer Material: Steel
Bearing Inner Diameter: 6mm
Quantity: One Bearing
| SMSTC6UU NB Two Side Cut Center Flange Anticorrosion Slide Bush Made in Japan:NB Linear Systems Nippon Bearing Linear Systems |
|
SMSTC6UU NB Two Side Cut Center Flange Linear Anticorrosion Slide Bush, Bearing is seals on both sides, The retainer material is steel, series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), Made in Japan.
|

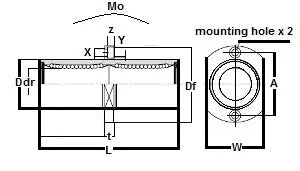

| Dimensions majeures | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| dr | D | L | Df | W | t | Un | X x Y x Z | |||
| mm | Tolérance | mm | Tolérance | |||||||
| 6 | 0-10 | 12 | 0-13 | 35 | 28 | 18 | 5 | 20 | 3,5 x 6 x 3,1 | |
