NB
SMSTC8UU NB 8mm Slide Bush Bushings Miniature Motion Linear Bearing
399,72 $ CAD 539,62 CADVous économisez 139,90 $ CAD
SKU: Kit20752
UPC: 00193019121450
UPC: 00193019121450
Item: SMSTC8UU NB Bearing
Type: Linear Slide Bush
Retainer Material: steel
Bearing Inner Diameter: 8mm
Quantity: One Bearing
Type: Linear Slide Bush
Retainer Material: steel
Bearing Inner Diameter: 8mm
Quantity: One Bearing

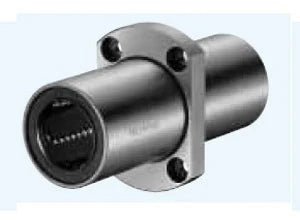

| SMSTC8UU NB Two Side Cut Center Flange Anticorrosion Slide Bush Made in Japan:NB Linear Systems Nippon Bearing Linear Systems |
SMSTC8UU NB Two Side Cut Center Flange Linear Anticorrosion Slide Bush, Bearing is seals on both sides, The retainer material is steel, series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), Made in Japan.
|

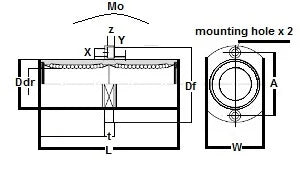

| Dimensions majeures | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| dr | D | L | Df | W | t | Un | X x Y x Z | |||
| mm | Tolérance | mm | Tolérance | |||||||
| 8 | 0-10 | 15 | 0-13 | 45 | 32 | 21 | 5 | 24 | 3,5 x 6 x 3,1 | |
