SMT8UUE NB 8mm Slide Bush Bushings Miniature Motion Linear Bearing
UPC: 00193019120736
Type: Linear Slide Bush
Retainer Material: Steel
Bearing Inner Diameter: 8mm
Quantity: One Bearing
SMT8UUE Linear Slide Bush
✔️ Two Side Cut Pilot End Flanged Type - Made in Japan
The SMT8UUE is a high-precision linear flange bushing from NB (Nippon Bearing), built for systems demanding accurate motion and solid mounting. Designed with pilot ends and dual side cuts, it’s ideal for compact installations with stable guidance and long-lasting sealed performance.
âś… Inner Diameter (dr): 8mm
âś… Outer Diameter (D): 15mm
âś… Length (L): 24mm
âś… Pilot Flange Diameter (Df): 32mm
âś… Flange Width (W): 21mm
âś… Retainer Material: Steel
âś… Closure: Sealed
âś… Country of Origin: Japan
âś… Dynamic Load Rating Cr: 274 N
âś… Static Load Rating Cor: 392 N
âś… Pack Size: 1 Bearing

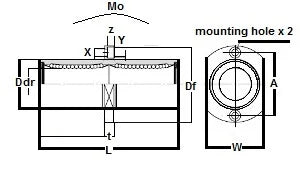

Tableau des dimensions :
| dr (mm) | D (mm) | L (mm) | Df (mm) | W (mm) | t (mm) | A (mm) | X Ă— Y Ă— Z (mm) |
|---|---|---|---|---|---|---|---|
| 8 | 15 | 24 | 32 | 21 | 5 | 24 | 3.5 Ă— 6 Ă— 3.1 |
đź’ˇ What are pilot-end linear bushings used for in motion systems?
They help simplify mounting while improving precision:
-
Pilot ends assist in accurate centering during installation
-
Flanged design adds rigidity and alignment support
-
Seals reduce wear and block contaminants
-
Perfect for CNC machines, automation rails, and 3D printers
This one’s proudly made in Japan, solid pick when you're building for accuracy and reliability!
