SMTC10UU NB 10mm Slide Bush Bushings Miniature Motion Linear Bearing
247,44 $ CAD 334,04 CADVous économisez 86,60 $ CAD
SKU: Kit20594
UPC: 00193019120569
UPC: 00193019120569
Item: SMTC10UU NB Bearing
Type: Linear Slide Bush
Retainer Material: Steel
Bearing Inner Diameter: 10mm
Quantity: One Bearing
Type: Linear Slide Bush
Retainer Material: Steel
Bearing Inner Diameter: 10mm
Quantity: One Bearing

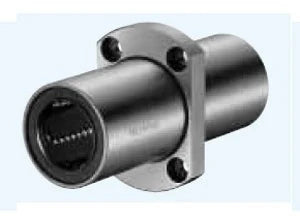

| SMTC10UU NB Two Side Cut Center Flange Slide Bush Made in Japan:NB Linear Systems Nippon Bearing Linear Systems |
SMTC10UU NB Two Side Cut Center Flange Linear Slide Bush, Bearing is seals on both sides, The retainer material is steel, series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), Made in Japan.
|
| Dimensions majeures | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| dr | D | L | Df | W | t | Un | X x Y x Z | |||
| mm | Tolérance | mm | Tolérance | |||||||
| 10 | 0-10 | 19 | 0-16 | 55 | 40 | 25 | 6 | 29 | 4,5 x 7,5 x 4,1 | |
