NB

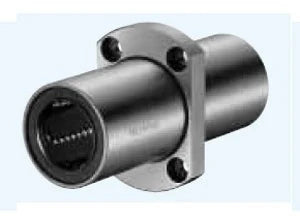

SMTC12GUU NB 12mm Slide Bush Bushings Miniature Motion Linear Bearing
205,56 $ CAD 277,50 CADVous économisez 71,94 $ CAD
SKU: Kit20670
UPC: 00193019120668
UPC: 00193019120668
Item: SMTC12GUU NB Bearing
Type: Linear Slide Bush
Retainer Material: Resin
Bearing Inner Diameter: 12mm
Quantity: One Bearing
Type: Linear Slide Bush
Retainer Material: Resin
Bearing Inner Diameter: 12mm
Quantity: One Bearing
| SMTC12GUU NB Two Side Cut Center Flange Slide Bush Made in Japan:NB Linear Systems Nippon Bearing Linear Systems |
SMTC12GUU NB Two Side Cut Center Flange Linear Slide Bush, Bearing is seals on both sides, The retainer material is resin, series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), Made in Japan.
|

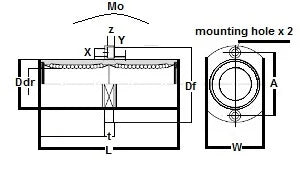

| Dimensions majeures | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| dr | D | L | Df | W | t | Un | X x Y x Z | |||
| mm | Tolérance | mm | Tolérance | |||||||
| 12 | 0-10 | 21 | 0-16 | 57 | 42 | 27 | 6 | 32 | 4,5 x 7,5 x 4,1 | |
