NB
SMTC13UU NB 13mm Slide Bush Bushings Miniature Motion Linear Bearing
266,48 $ CAD 359,73 CADVous économisez 93,25 $ CAD
SKU: Kit20596
UPC: 00193019120583
UPC: 00193019120583
Item: SMTC13UU NB Bearing
Type: Linear Slide Bush
Retainer Material: Steel
Bearing Inner Diameter: 13mm
Quantity: One Bearing
Type: Linear Slide Bush
Retainer Material: Steel
Bearing Inner Diameter: 13mm
Quantity: One Bearing

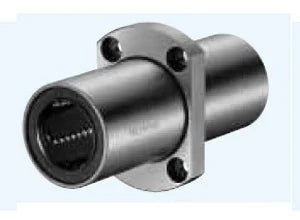

| SMTC13UU NB Two Side Cut Center Flange Slide Bush Made in Japan:NB Linear Systems Nippon Bearing Linear Systems |
SMTC13UU NB Two Side Cut Center Flange Linear Slide Bush, Bearing is seals on both sides, The retainer material is steel, series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), Made in Japan.
|

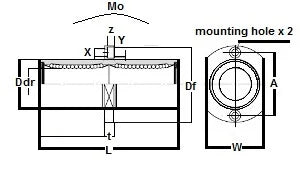

| Dimensions majeures | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| dr | D | L | Df | W | t | Un | X x Y x Z | |||
| mm | Tolérance | mm | Tolérance | |||||||
| 13 | 0-10 | 23 | 0-16 | 61 | 43 | 29 | 6 | 33 | 4,5 x 7,5 x 4,1 | |
