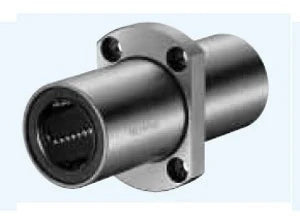

SMTC16GUU NB 16mm Slide Bush Bushings Miniature Motion Linear Bearing
224,60 $ CAD 303,21 CADVous économisez 78,61 $ CAD
SKU: Kit20672
UPC: 00193019120682
UPC: 00193019120682
Item: SMTC16GUU NB Bearing
Type: Linear Slide Bush
Retainer Material: Resin
Bearing Inner Diameter: 16mm
Quantity: One Bearing
Type: Linear Slide Bush
Retainer Material: Resin
Bearing Inner Diameter: 16mm
Quantity: One Bearing
| SMTC16GUU NB Two Side Cut Center Flange Slide Bush Made in Japan:NB Linear Systems Nippon Bearing Linear Systems |
SMTC16GUU NB Two Side Cut Center Flange Linear Slide Bush, Bearing is seals on both sides, The retainer material is resin, series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), Made in Japan.
|

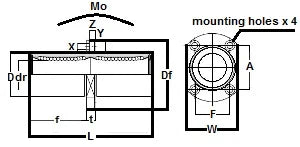

| Dimensions majeures | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| dr | D | L | Df | W | t | Un | F | X x Y x Z | ||
| mm | Tolérance | mm | Tolérance | |||||||
| 16 | 0-10 | 28 | 0-16 | 70 | 48 | 34 | 6 | 31 | 22 | 4,5 x 7,5 x 4,1 |
