SMTC25GUU NB 25mm Slide Bush Bushings Motion Linear Bearing
418,76 $ CAD 565,31 CADvous économisez 146,55 $ CAD
SKU: Kit20674
UPC: 00193019120705
UPC: 00193019120705
Item: SMTC25GUU NB Bearing
Type: Linear Slide Bush
Retainer Material: resin
Bearing Inner Diameter: 25mm
Quantity: One Bearing
Type: Linear Slide Bush
Retainer Material: resin
Bearing Inner Diameter: 25mm
Quantity: One Bearing

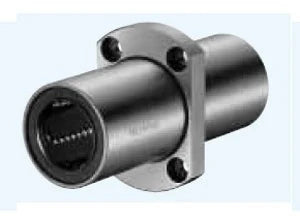

| SMTC25GUU NB Two Side Cut Center Flange Slide Bush Made in Japan:NB Linear Systems Nippon Bearing Linear Systems |
SMTC25GUU NB Two Side Cut Center Flange Linear Slide Bush, Bearing is seals on both sides, The retainer material is resin, series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), Made in Japan.
|

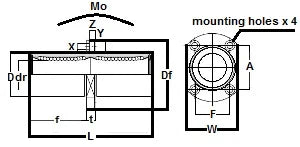

| Dimensions majeures | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| dr | D | L | Df | W | t | Un | F | X x Y x Z | ||
| mm | Tolérance | mm | Tolérance | |||||||
| 25 | 0-12 | 40 | 0-19 | 112 | 62 | 46 | 8 | 40 | 32 | 5,5 x 9 x 5,1 |
