NB
SMTC30GUU NB 30mm Slide Bush Bushings Motion Linear Bearing
$572.94 CAD
$773.46 CADyou save $200.52 CAD
SKU: Kit20675
UPC: 00193019120712
UPC: 00193019120712
Item: SMTC30GUU NB Bearing
Type: Linear Slide Bush
Retainer Material: Resin
Bearing Inner Diameter: 30mm
Quantity: One Bearing
Type: Linear Slide Bush
Retainer Material: Resin
Bearing Inner Diameter: 30mm
Quantity: One Bearing
| SMTC30GUU NB Two Side Cut Center Flange Slide Bush Made in Japan:NB Linear Systems Nippon Bearing Linear Systems |

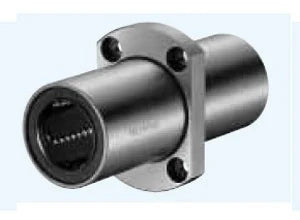

SMTC30GUU NB Two Side Cut Center Flange Linear Slide Bush, Bearing is seals on both sides, The retainer material is resin, series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), Made in Japan.
|

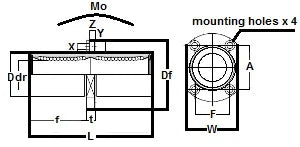

| Dimensions majeures | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| dr | D | L | Df | W | t | Un | F | X x Y x Z | ||
| mm | Tolérance | mm | Tolérance | |||||||
| 30 | 0-12 | 45 | 0-19 | 123 | 74 | 51 | 10 | 49 | 35 | 6,6 x 11 x 6,1 |
