NB
SMTC30UU NB 30mm Slide Bush Bushings Motion Linear Bearing
782,32 $ CAD 1 056,13 CADVous économisez 273,81 $ CAD
SKU: Kit20666
UPC: 00193019120620
UPC: 00193019120620
Item: SMTC30UU NB Bearing
Type: Linear Slide Bush
Retainer Material: Steel
Bearing Inner Diameter: 30mm
Quantity: One Bearing
Type: Linear Slide Bush
Retainer Material: Steel
Bearing Inner Diameter: 30mm
Quantity: One Bearing

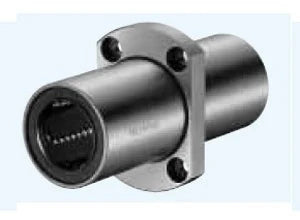

| SMTC30UU NB Two Side Cut Center Flange Slide Bush Made in Japan:NB Linear Systems Nippon Bearing Linear Systems |
SMTC30UU NB Two Side Cut Center Flange Linear Slide Bush, Bearing is seals on both sides, The retainer material is steel, series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), Made in Japan.
|

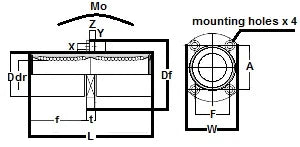

| Dimensions majeures | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| dr | D | L | Df | W | t | Un | F | X x Y x Z | ||
| mm | Tolérance | mm | Tolérance | |||||||
| 30 | 0-12 | 45 | 0-19 | 123 | 74 | 51 | 10 | 49 | 35 | 6,6 x 11 x 6,1 |
