NB
SMTC8UU NB 8mm Slide Bush Bushings Miniature Motion Linear Bearing
241,73 $ CAD 326,33 CADVous économisez 84,60 $ CAD
SKU: Kit20593
UPC: 00193019120552
UPC: 00193019120552
Item: SMTC8UU NB Bearing
Type: Linear Slide Bush
Retainer Material: Steel
Bearing Inner Diameter: 8mm
Quantity: One Bearing
Type: Linear Slide Bush
Retainer Material: Steel
Bearing Inner Diameter: 8mm
Quantity: One Bearing
| SMTC8UU NB Two Side Cut Center Flange Slide Bush Made in Japan:NB Linear Systems Nippon Bearing Linear Systems |
SMTC8UU NB Two Side Cut Center Flange Linear Slide Bush, Bearing is seals on both sides, The retainer material is steel, series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), Made in Japan.
|

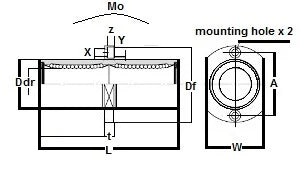

| Dimensions majeures | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| dr | D | L | Df | W | t | Un | X x Y x Z | |||
| mm | Tolérance | mm | Tolérance | |||||||
| 8 | 0-10 | 15 | 0-13 | 45 | 32 | 21 | 5 | 24 | 3,5 x 6 x 3,1 | |
