SWD20 NB Ball Bushing 1-1/4" Open Block Linear Motion
451,12 $ CAD 608,99 CADvous économisez 157,87 $ CAD
SKU: SWD20-NB
UPC: 00193019132883
UPC: 00193019132883
Item: SWD20 NB Bearing
Type: Linear Ball Bushing
Shaft diameter: 1 1/4" inch
Quantity: One Bearing
Dynamic Load Rating Cr: 1570 N
Type: Linear Ball Bushing
Shaft diameter: 1 1/4" inch
Quantity: One Bearing
Dynamic Load Rating Cr: 1570 N

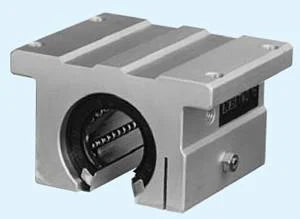

| SWD20 Slide Unit Block Type Made in Japan:NB Linear Systems Nippon Bearing Linear Systems |
1 1/4" Slide Unit Block Type (Inch Series), measures an inner diameter of 1 1/4" inch, bearing has steel retainer, series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), made in Japan.
|

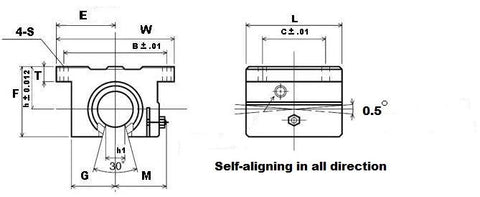

| Dimensions majeures | Dimensions de montage | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| h | E | W | L | F | T | G | M | h1 | B | C | S |
| 1-1/2" | 2" | 4" | 3-3/8" | 2-31/64" | 7/16" | 1-1/2" | 1-3/16" | 5/8" | 3-1/2" | 2" | 7/32" |
