NB
SWF32GUU NB Bushings à bille de 2 pouces Mouvement linéaire à bride ronde
588,18 $ CAD 794,04 CADVous économisez 205,86 $ CAD
SKU: SWF32GUU-NB
UPC: 00193019132999
UPC: 00193019132999

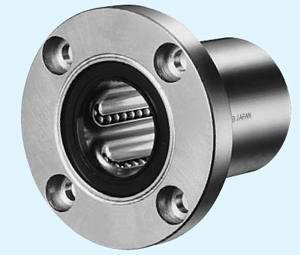

Item: SWF32GUU NB Bearing
Type: NB Linear Systems ball bushing
Shaft Diameter: 2" Inch
Dynamic load rating Cr: 3820 N
Static load rating Cor: 7940 N
Type: NB Linear Systems ball bushing
Shaft Diameter: 2" Inch
Dynamic load rating Cr: 3820 N
Static load rating Cor: 7940 N
| SWF32GUU NB:Made in Japan:NB Linear Systems Round Flange Type Nippon Bearing Linear Systems |
|
SWF32GUU NB 2" Bore linear motion ball bushings/bearings, the inner diameter(bore) is 2" inch dimensions with resin retainer, bearing is sealed on both sides, bearing is a high accuracy grade linear bushings, series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), made in Japan.
|

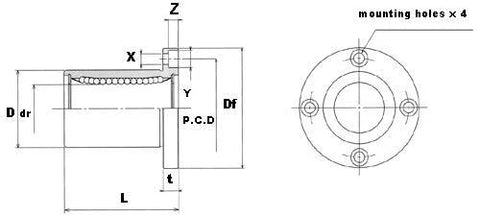

| Dimensions (pouces) | ||||||||
|---|---|---|---|---|---|---|---|---|
| dr | D | L | Df | t | P.C.D. | X | Y | Z |
| 2 | 3 | 4 | 4.375 | 0.5 | 3.688 | 0.344 | 0.5 | 0.328 |
