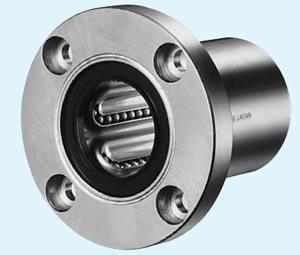

SWF8GUU NB 1/2" Ball Bushings Round Flange Linear Motion
89,45 $ CAD 120,75 CADTu économises 31,30 $ CAD
SKU: SWF8GUU-NB
UPC: 00193019133019
UPC: 00193019133019
Item: SWF8GUU NB Bearing
Type: NB Linear Systems ball bushing
Shaft Diameter: 1/2" Inch
Dynamic load rating Cr: 206 N
Static load rating Cor: N
Type: NB Linear Systems ball bushing
Shaft Diameter: 1/2" Inch
Dynamic load rating Cr: 206 N
Static load rating Cor: N
| SWF8GUU NB:Made in Japan:NB Linear Systems Round Flange Type Nippon Bearing Linear Systems |
|
SWF8GUU NB 1/2" Bore linear motion ball bushings/bearings, bearing has seals on both sides, the inner diameter(bore) is 1/2" inch dimensions with resin retainer, bearing is a high accuracy grade linear bushings, series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), made in Japan.
|

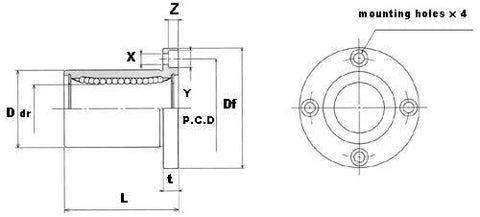

| Dimensions (pouces) | ||||||||
|---|---|---|---|---|---|---|---|---|
| dr | D | L | Df | t | P.C.D. | X | Y | Z |
| 0.5 | 0.875 | 1.25 | 1.75 | 0.25 | 1.312 | 0.188 | 0.3 | 0.172 |
