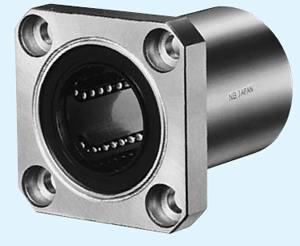

SWK20G NB 1-1/4" Ball Bushings Square Flange Linear Motion
232,21 $ CAD 313,49 CADVous économisez 81,28 $ CAD
SKU: SWK20G-NB
UPC: 00193019133095
UPC: 00193019133095
Item: SWK20G NB Bearing
Type: NB Linear Systems ball bushing
Shaft Diameter: 1 1/4" Inch
Dynamic Load Rating Cr: 1570 N
Static Load Rating Cor: 2740 N
Type: NB Linear Systems ball bushing
Shaft Diameter: 1 1/4" Inch
Dynamic Load Rating Cr: 1570 N
Static Load Rating Cor: 2740 N
| SWK20G NB:Made in Japan:NB Linear Systems Square Flange Type Nippon Bearing Linear Systems |
|
SWK20G NB 1 1/4" Bore linear motion ball bushings/bearings, the inner diameter(bore) is 1 1/4" inch dimensions with steel retainer, bearing is resin cage, bearing is a high accuracy grade linear bushings, series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), made in Japan.
|

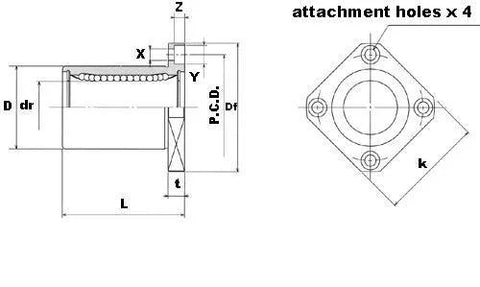

| Dimensions (pouces) | ||||||||
|---|---|---|---|---|---|---|---|---|
| dr | D | L | Df | t | P.C.D. | X | Y | Z |
| 1.25 | 2 | 2.625 | 3.125 | 2.563 | 0.375 | 0.281 | 0.406 | 0.266 |
