TK16 NB Self Aligning 16mm Ball Bushings Linear Motion - Made in Japan
UPC: 00193019133330
Type: NB Linear System Ball Bushing
Shaft Diameter: 16mm
Ball circuit: 5
Dynamic Load Rating: 1250 N

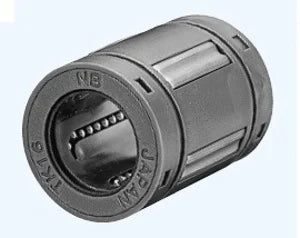

TK16 NB TopBall Linear Bearing - Made in Japan
✔️ 16mm Bore - High Load, Long-Life Slide Bushing
The TK16 NB is a precision TopBall linear motion bearing designed for smooth, accurate travel along 16mm shafts. Made in Japan by NB (Nippon Bearing), this high-performance bushing features five ball circuits and built-in seals. It delivers up to 3x the load capacity and 27x the service life of standard linear bushings - perfect for industrial automation, robotics, and CNC machinery.
✅ Shaft Diameter (Bore): 16mm
✅ Outer Diameter: 26mm
✅ Overall Length: 36mm
✅ Ball Circuits: 5 for even load distribution
✅ Built-in Seals: Yes - to keep contaminants out
✅ Material: High-grade bearing steel
✅ Dynamic Load Rating: 1,250 N
✅ Static Load Rating: 1,550 N
✅ Brand: NB (Nippon Bearing)
✅ Country of Origin: Japan
✅ Quantity: 1 bearing

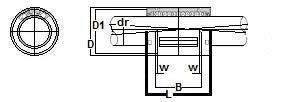

Major Dimensions Table (mm):
| dr (ID) | D (OD) | L (Longueur) | B | W | D1 |
|---|---|---|---|---|---|
| 16 | 26 | 36 | 24.9 | 1.3 | 24.9 |
💡 What makes NB TopBall linear bearings better than conventional bushings?
NB TopBall bearings use a unique internal design that reduces internal friction and maximizes ball contact, resulting in higher load capacity, reduced wear, and dramatically extended service life in linear motion systems.
Engineered for precision and performance - upgrade with the TK16 today and enjoy smooth travel that lasts!
