NB
TRF40GUUE NB 40mm Slide Bush Bushings Motion Linear Bearing
$1,825.44 CAD
$2,464.34 CADyou save $638.90 CAD
SKU: Kit21163
UPC: 00193019124697
UPC: 00193019124697
Item: TRF40GUUE NB Bearing
Type: Linear Slide Bush
Bearing Inner Diameter: 40mm
Retainer Material: resin
Quantity: One Bearing
Type: Linear Slide Bush
Bearing Inner Diameter: 40mm
Retainer Material: resin
Quantity: One Bearing

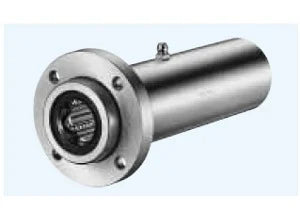

| TRF40GUUE NB Triple Wide Round Flange Pilot End Slide Bush Made in Japan:NB Linear Systems |
TRF40GUUE NB Triple Wide Round Flange Pilot End Type Miniature Slide Bush, The retainer material is resin, It is seals on both sides, series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), Made in Japan.
|

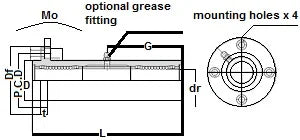

| Dimensions majeures | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| dr | D | L | Df | t | P.C.D | X x Y x Z | |||
| mm | Tolérance | mm | Tolérance | ||||||
| 40 | 0-12 | 65 | 0-30 | 230 | 101 | 13 | 83 | 9 x 14 x 8,1 | |
